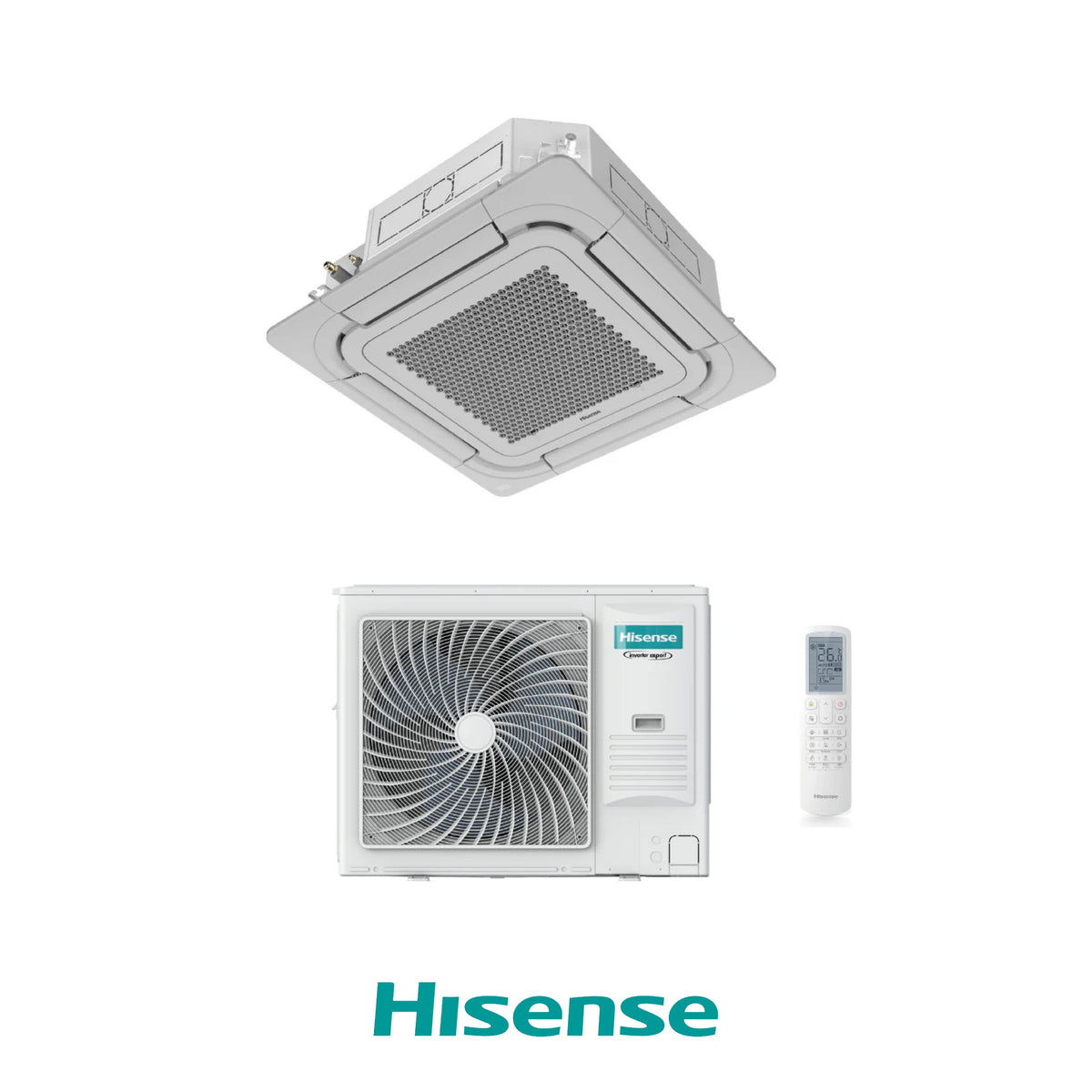

HISENSE 4-WAY CASSETTE AIR CONDITIONER SET 60000 BTU AUC175UR4RKC8 THREE-PHASE 90X90 CIRCULAR FLOW R32 TURBO INVERTER A++

Hisense 4-Way Cassette Air Conditioner 60000 BTU Three-Phase

Complete Set Indoor Unit + Outdoor Unit + 90x90 Panel | AUC175UR4RKC8 | Inverter | R32 | Commercial

Commercial / Extra-Large Area Air Conditioning Set:

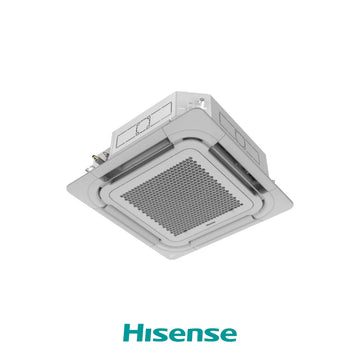

Indoor Unit Model: AUC175UR4RKC8 (Round Flow 90x90 Cassette Series)

Outdoor Unit Model: AUW175U6RT7 / AUW175U6RN8 (Three-Phase Power Supply 380-415V)

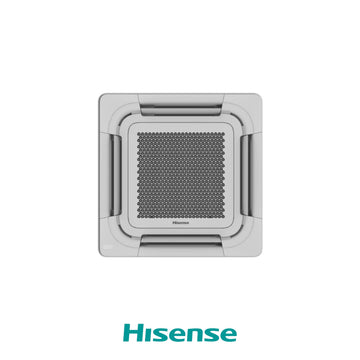

Panel / Grille: PE-QEA-LD (90x90 cm Format)

Nominal Power: 16.0–17.5 kW / 60000 BTU

Recommended Area: Ideal for large commercial spaces, showrooms, gyms, open-plan offices, and restaurants up to 160–200 m².

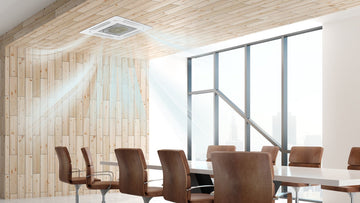

360° Air Distribution and Maximum Power

Designed to ensure perfect air conditioning even in the largest and most crowded commercial environments:

Circular Airflow (360° Round Flow): The design of the louvers and motorized vanes allows for homogeneous air diffusion in every direction, eliminating thermal blind spots and avoiding direct drafts.

Independent Vane Control: Each deflector can be individually adjusted via remote control to adapt the airflow to the room's shape and workstation layout.

Turbo Function: Activates maximum ventilation and compression power to reach the desired temperature in the shortest possible time.

Professional Engineering and Easy Installation

Three-Phase Power Supply (400V): Designed for high-power industrial and commercial systems, it ensures grid stability and reduces inrush current during startup.

High-Lift Condensate Drain Pump: Integrated high-lift pump as standard to facilitate water drainage and installation within false ceilings.

Fresh Air Intake Provision: Allows for the introduction of fresh air from outside to maintain a healthy and well-ventilated environment.

Energy Efficiency and Smart Control

Inverter R32 Technology: Reduces operating consumption by modulating power according to the actual thermal load required.

Wi-Fi Ready: Compatible with the optional Wi-Fi module AEH-W4GX for complete remote management via smartphone with the ConnectLife app and voice commands.

Dimensions and Weight of Indoor and Outdoor Units, Panel

Indoor unit
Length: 840 mm
Height: 298 mm
Depth: 840 mm

Weight: 32 kg

Outdoor unit
Length: 1100 mm
Height: 875 mm
Depth: 450 mm

Weight: 85 kg

Outdoor Panel
Length: 950 mm
Height: 37 mm
Depth: 950mm

Weight: 6 kg

Accessories and Warranty

Included in the package: Wireless remote control, PE-QEA-LD cover panel.

Official Hisense Italy Warranty: 36 months of full product coverage. By registering the unit on the official Hisense website, the warranty on the compressor alone extends to 5 years.
