HISENSE 4-WAY CASSETTE AIR CONDITIONER SET 48000 BTU AUV140UR4RC8 THREE-PHASE 90X90 CIRCULAR FLOW R32 TURBO INVERTER A++

Hisense 4-Way Cassette Air Conditioner 48000 BTU Three-Phase

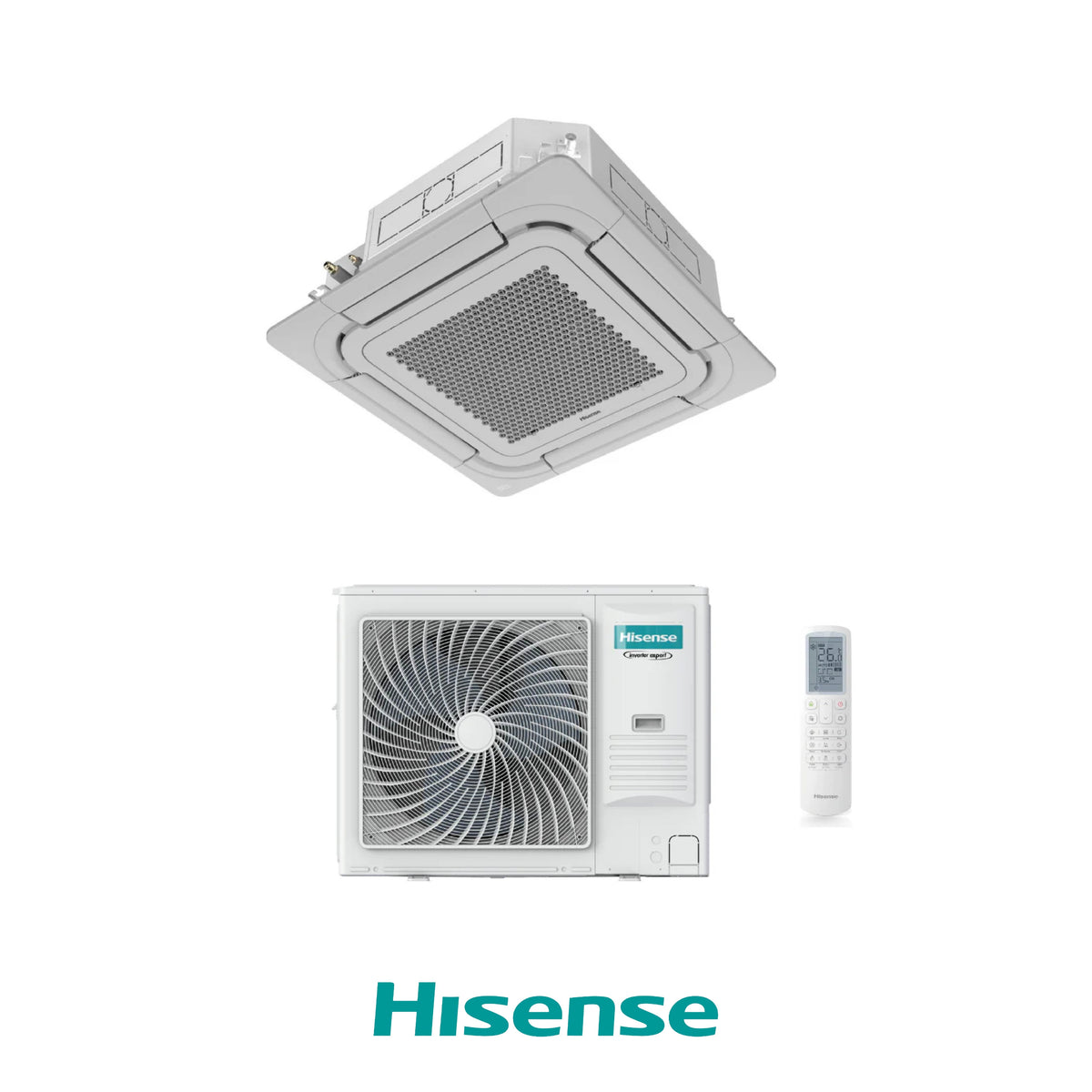

Complete Set Indoor + Outdoor Unit + 90x90 Panel | AUV140UR4RC8 | Inverter | R32 | Commercial

Commercial / Large Area Air Conditioning Set:

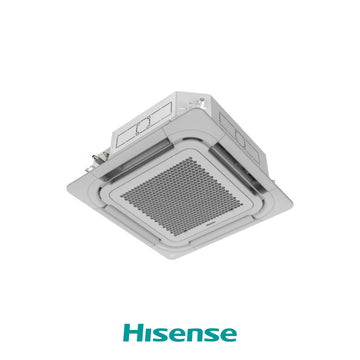

Indoor Unit Model: AUC140UR4RKC8 (Round Flow 90x90 Cassette Series)

Outdoor Unit Model: AUW140U6RW8 / AUW140U6RN8 (Three-Phase Power Supply 380-415V)

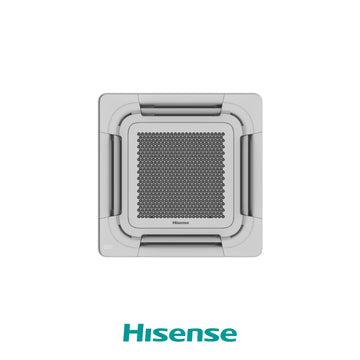

Panel / Grille: PE-QEA-LD (90x90 cm format)

Rated Power: 13.5–14.0 kW / 48000 BTU

Recommended Area: Ideal for large commercial premises, salons, showrooms, open-plan offices and hospitality facilities up to 140–160 m².

360° Air Distribution and Total Comfort

Designed to ensure ideal air conditioning in environments with high thermal loads without causing fluctuations or direct drafts:

Circular Air Flow (Round Flow): The special design of the panel and louvers distributes air 360°, uniformly covering the entire area and eliminating hot or cold spots.

Individual Louver Management: The four motorized louvers can be independently oriented via remote or wired control, to adapt the airflow to the furniture arrangement.

Turbo Function: Maximizes output at startup to bring the environment to the ideal temperature in the shortest possible time.

Professional Engineering and Advanced Features

Three-Phase Power Supply (400V): Designed for commercial and industrial electrical systems, ensuring energy stability, reduced inrush currents, and balanced network loads.

High-Lift Condensate Drain Pump: Integrated as standard with a lift of up to 1200 mm to facilitate condensate drainage and ceiling mounting.

Fresh Air Intake (Renewal): Prepared for the intake of clean air from outside (up to 20% of the total flow rate), improving indoor air quality.

Energy Efficiency and Smart Control

R32 Inverter Technology: Intelligent modulation of compressor frequency to ensure very high thermal output and reduced consumption compared to traditional systems.

Wi-Fi Ready: Compatible with the optional Wi-Fi module AEH-W4GX for complete remote management via the ConnectLife app and integration with Amazon Alexa and Google Assistant.

Indoor and Outdoor Unit, Panel Dimensions and Weight

Indoor unit
Length: 840 mm
Height: 272 mm
Depth: 840 mm

Weight: 32 kg

Outdoor unit
Length: 1100 mm
Height: 875 mm
Depth: 450 mm

Weight: 85 kg

Outdoor panel
Length: 950 mm
Height: 37 mm
Depth: 950mm

Weight: 6 kg

Accessories and Warranty

Included in the package: Wireless remote control, PE-QEA-LD cover panel.

Official Hisense Italy Warranty: 36 months of total product coverage. By registering the unit on the official Hisense website, the warranty on the compressor alone is extended to 5 years.
